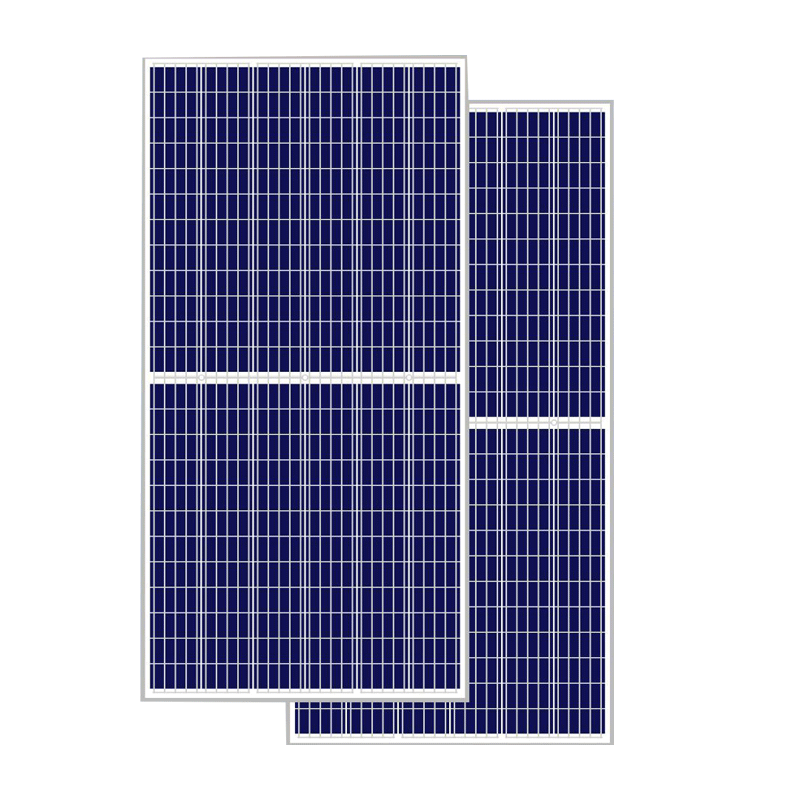

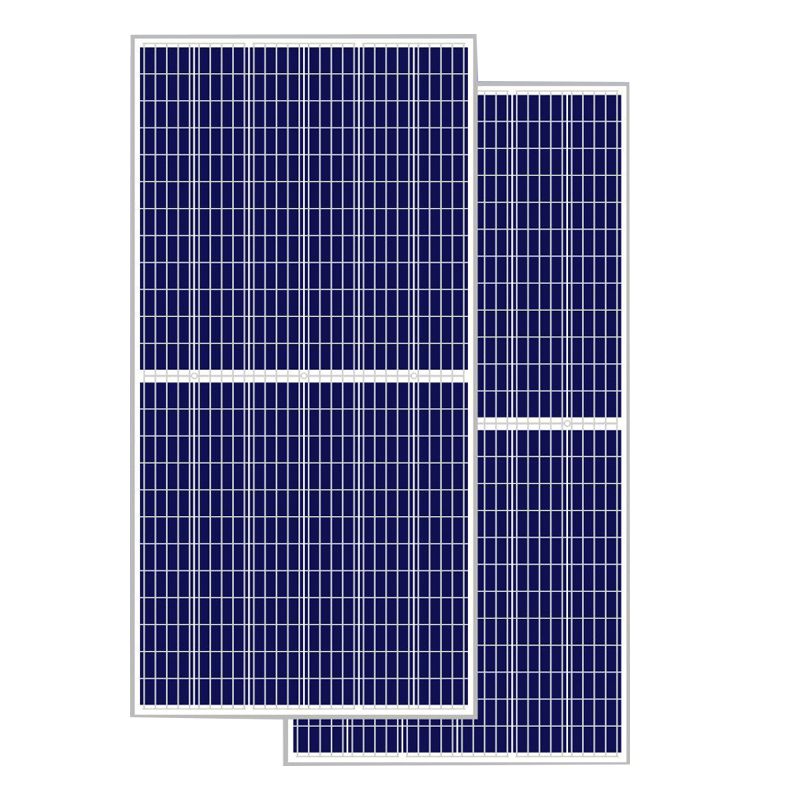

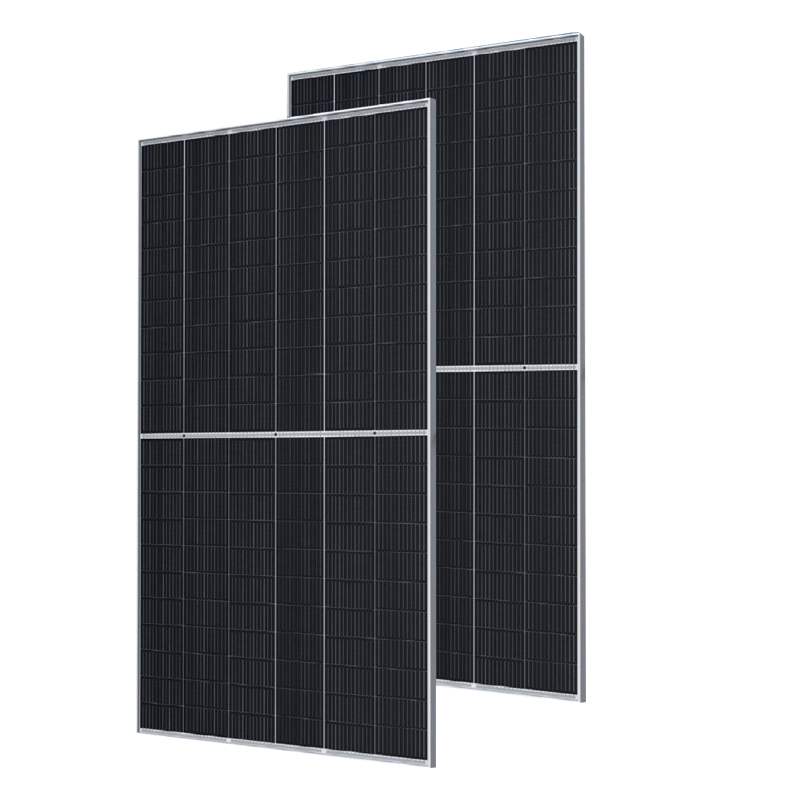

Monocrystalline Solar Panel Series FQHTL-60WP

Component Model:FQHTK-60WP-300M

Maximum Power (Pmax/W):300

Open-Circuit Voltage (Voc/V):39.8

Short-Circuit Current (Isc/A):9.88

Peak Power Voltage (Vmp/V):32.4

Peak Power Current (Imp/V):9.26

Module Efficiency (%):18.5

Battery Arrangement:6x10

Junction Box:IP67

Output Cable:4 mm², 900 mm cable length; cable length can be customized

玻璃:Single-pane 3.2mm coated tempered glass

Component Weight (kg):18.5kg/22.5kg

Component Dimensions (mm):1640x992x35

Open-Circuit Voltage (Voc/V):+0.057%C

Short-Circuit Current (Isc/A):-0.286%C

Peak Power (Pmax):-0.370%C

Operating Temperature (°C):-40C~85C

Maximum System Voltage:DC1500V（IEC）

Maximum Fuse Rating (A):20

Standard Operating Temperature (°C):45+-2C

Safety Protection Level:Class II

Frontal Static Load (Pa):5200

Static Load on the Back Side (Pa):2200

Hail Test:25 mm in diameter, impact velocity of 22 m/s
